2C9 High Temperature and Pressure Resistant Hydraulic Tube Fittings for Sample Request

Large Image : 2C9 High Temperature and Pressure Resistant Hydraulic Tube Fittings for Sample Request

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	100/item
Price:	USD 0.2-13 yuan/item
Packaging Details:	Carton+pallet/wooden box
Delivery Time:	Shipped within 25 days after payment is received
Payment Terms:	T/T
Supply Ability:	500,000 pieces/month

Contact Now

2C9 High Temperature and Pressure Resistant Hydraulic Tube Fittings for Sample Request

Description

Model NO.:	2C9	Advantage:	Long Working Life
Transport Package:	Cartons And Wooden Box	Specification:	Customized Size
Trademark:	HQ	Origin:	China
Material:	Medium Carbon Steel	Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon	Application:	Pipe Lines Connect
Service:	OEM Service	Samples:	US$ 0.2/Piece 1 Piece(Min.Order) \| Request Sample

90° Elbow Tube Adaptor With Swivel Nut 2C9-W 2D9-W 2C9-W/RN 2D9-W/RN
Customized support:
OEM, ODM
Place of Origin:
Hebei, China
Technics:
Forged
Connection:
Male
Shape:
Equal
Head Code:
Square
Color:
white
Application:
railway locomotives and engineering vehicle
Size:
L10 G3/8
Delivery Time:
15 Days
Payment:
T/T Advance
Surface treatment:
galvanized
Body material:
Carbon Steel

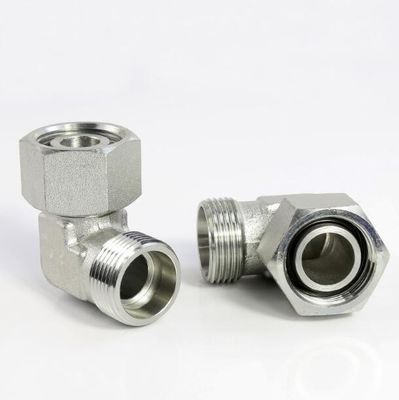

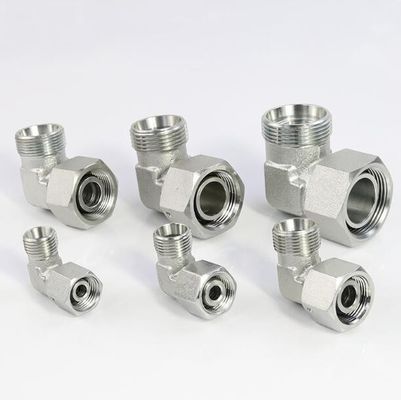

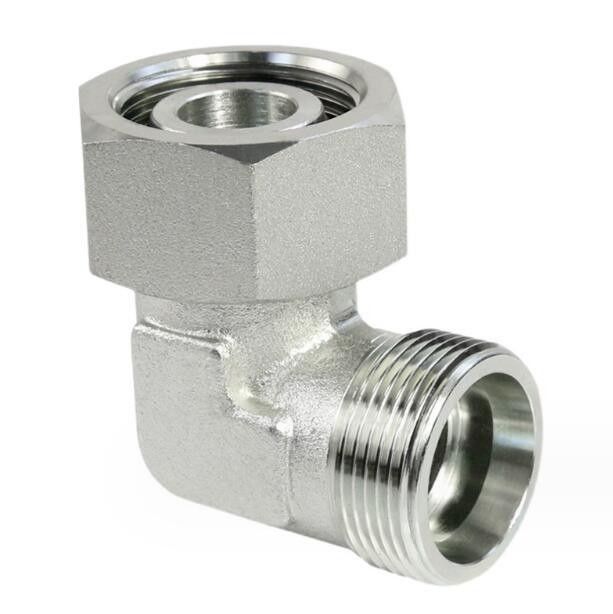

90° Elbow Tube Adaptor With Swivel Nut,one end male thread three ends male thread female cone 24° cone can be formed to the tube end, welded tube, ferrule connection, one end movable female thread 24° cone O-ring seal, pressure range up to 630bar/9000PSI. conforming to international standards: DIN3861/ISO8434, available with standard pipe diameters 24° cone light connection ( DIN2353)06L-42L, 24° cone heavy duty (DIN2353)06S-38S, available with reducers.
High Temperature High Pressure Resistant Hydraulic Tube Fittings 2c9

China Huiqi(Beijing) Technology Co., Ltd manufactures professional fluid connectors.
The main products include tube fittings, hose fittings, adapters, hose assembly, flanges, and other kinds of fluid connectors.
We can produce BSP, BSPT, SAE, JIS, DIN, ISO, Metric, etc. international standard fittings and provide OEM services.

Our main products are :

1,Ferrule , matched with many kinds of pipes such as SAE , DIN , EN , GB etc

2,Metric Fitting
Flat Seal Fitting , Mulit-seal Fitting , spherical seal Fitting , 60° Cone seal Fitting , 74° cone seal Fitting , 24°cone O-ring L.T. Fitting , 24°cone O-ring H.T. Fitting , JIS 60° Cone Seal Fitting, Standpipe Fitting , Japan Metric Fitting etc;

3,British Tube Fitting
JIS BSP 60° Cone seal Fitting , BSPT Fitting, BSP multiseal Fitting , BSP flat Seal Fitting , BSP O-ring Seal Fitting

4,Americal Tube Fitting
NPT Fitting , JIC 74°Cone Seal Fitting , NPSM 60°Cone Seal Fitting , ORFS Flat Seal Fitting ,SAE O-ring Seal Fitting

5,One piece fitting
JIC , BSP , Metric , Flange

6, Flange
SAE Code 62 Flange , SAE Code 61 Flange,CAT Flange

7,Other Adapter

Note: Special dimension and other standard fitting can be customized, OEM/ODM is welcomed.

High Temperature High Pressure Resistant Hydraulic Tube Fittings 2c9

Packaging Details

1. All products are equipped with protective caps

2.HT custom plastic bags

3. Waterproof film and foam protection

4. Carton + pallet/wooden

5.Long-distance seaworthy package

6.According to customers' request

Q: Are you trading company or manufacturer ?
A: We are factory, is one with years of professional experience of manufacturing hydraulic accessories products as well as with mature production technology.

Q: How can you ensure your product quality?
A: We will arrange sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample.

Q: Do you offer hydraulic fitting OEM service and can you produce as our drawings?
A: Yes. We offer hydraulic fitting OEM service and your designed drawings.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q: What's your delivery time?
A: Generally, we will arrange shipment with 25 days after receiving the deposit. If urgent, we can also meet your requirement.

If you have another question, pls feel free to contact us.
